Dimension:370*320*130(mm)

Carton:450*220*410(mm)

Gross Weight: 6.8kg

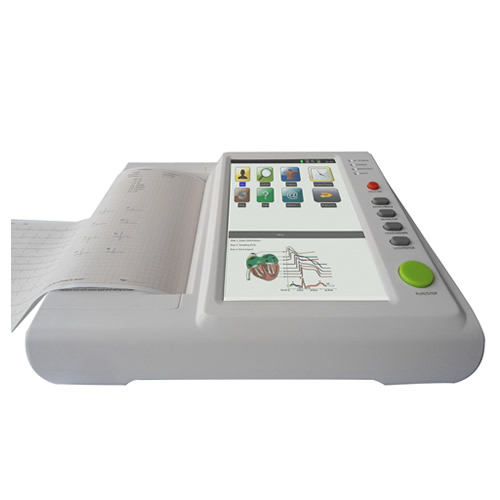

1) Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.

2) 10.2'' color touch-screen, both push-button and touch operation.

3) Sensitive filters of ADS, HUM, and EMG.

4) Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-disgnostic.

5) Thermal printer with 216mm print paper, synchronization print. 7-level printing thick can be chosen.

6) Lead off & lack off paper detection function.

7) Built-in rechargeable li-ion battery, AC/DC power conversion.

8) Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
